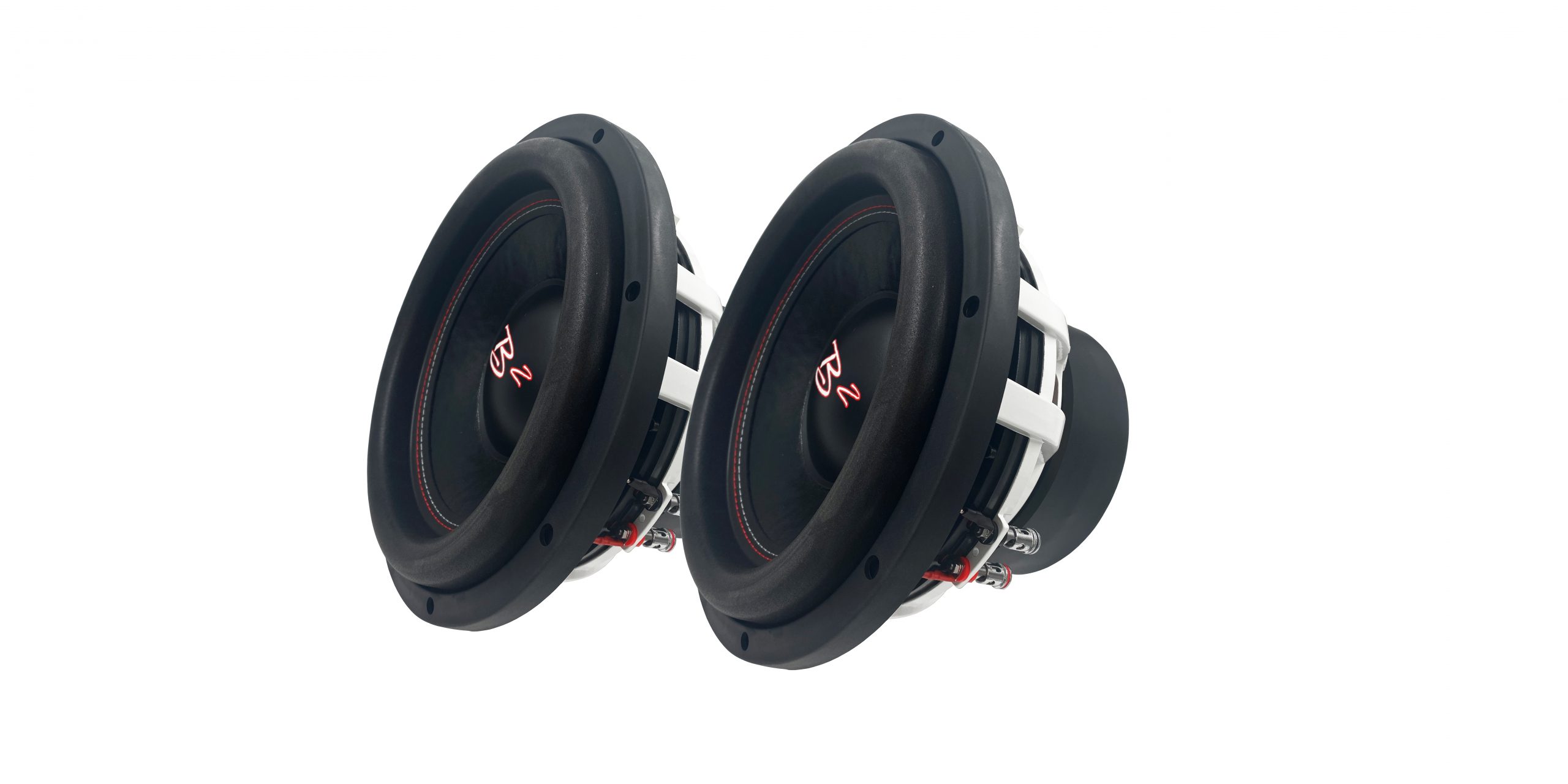

RIOT12
€279,00
The RIOT 12 is built for enthusiasts who want uncompromising bass performance in a compact form factor. Engineered with a high‑excursion motor and long‑throw suspension, the RIOT 12 delivers deep, controlled low‑end with the authority and precision that define the RIOT series.
ENGINEERING YOU CAN FEEL
SUSPENSION

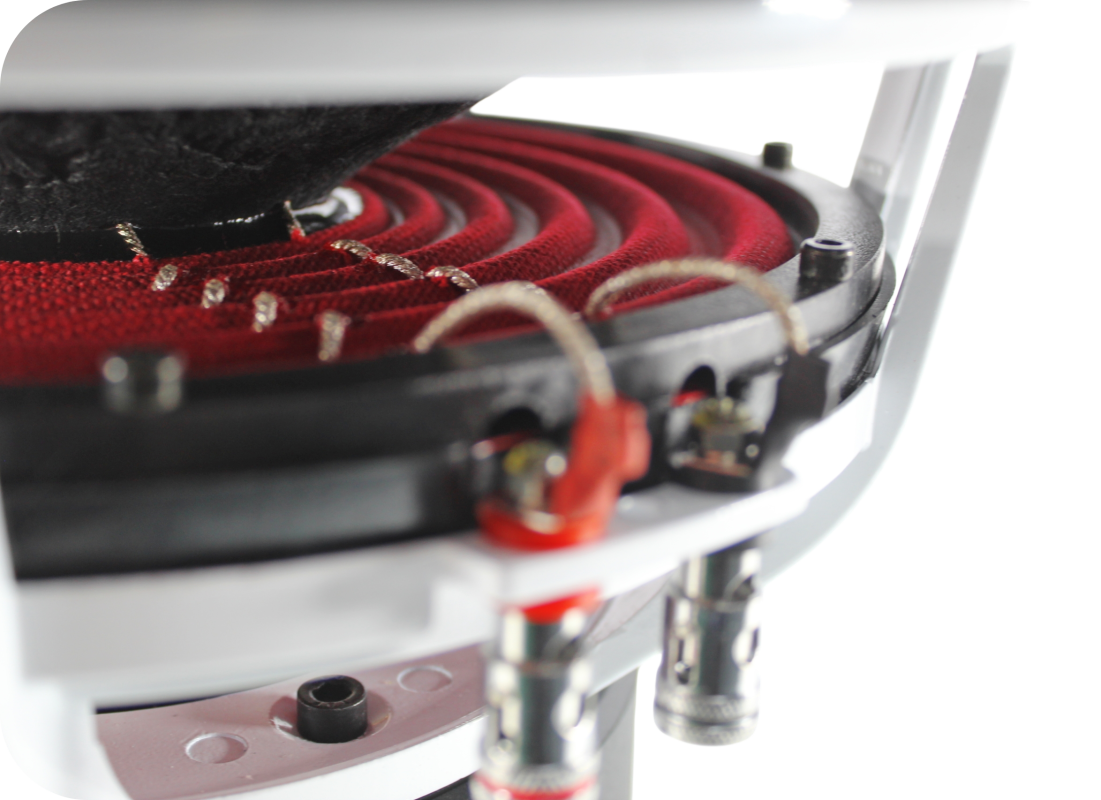

The RIOT 12 inherits the massive 10″ spider landing of our other 3″ voice coil platforms and a 4‑layer progressive‑roll spider, giving the cone the freedom to move while staying perfectly controlled. This design supports long, clean excursion without the mechanical noise or instability that plagues cheaper drivers. The result is bass that stays tight, accurate, and powerful — even when you push it.
The narrow U‑shaped surround is engineered to preserve as much Sd as possible, giving the RIOT12 a natural advantage in low‑frequency efficiency. More cone area means more air moved per watt, and that translates directly into deeper, fuller, more impactful bass. Paired with a lightweight, rigid paper cone and dual‑color stitched surround, the RIOT12 delivers both performance and durability.
| DUAL 2 Ω | ||||
| Frequency Response: | Sensitivity: | Nominal Impedance: | Resonance Frequency: | Power Handling: |
| 10 Hz ~ 500 Hz | 82.4 dB | 2 Ω | 29.9 Hz | 3000 W / 1000 W |
| QMS: | QES: | QTS: | VAS: | BL^2/RE: |
| 6.55 | 0.61 | 0.55 | 34.9 L | 95.5 |
| MMS: | CMS um/N: | Dia: | SD: | LE: |
| 300.8 g | 90 | 259 mm | 527.7 cm² | 2.39 mH |
| Xmax: | Xmech: | Voice Coil Dim: | Winding Material / Type: | Magnet Type: |
| 18 mm / .708" | 30 mm / 1.2" | 3" | 4 Layer copper | Ferrite |
| Magnet Weight Oz: | Cone Material: | Surround Type: | Efficiency: | Displacement: |
| 240 | Paper | U shaped foam | 0.15 % | 5.2 L / 0.19 cu.ft |
| DUAL 4 Ω | ||||
| Frequency Response: | Sensitivity: | Nominal Impedance: | Resonance Frequency: | Power Handling: |
| 10 Hz ~ 500 Hz | 84.9 dB | 4 Ω | 30.4 Hz | 3000 W / 1000 W |
| QMS: | QES: | QTS: | VAS: | BL^2/RE: |
| 6.56 | 0.7 | 0.63 | 35.6 L | 81.3 |
| MMS: | CMS um/N: | Dia: | SD: | LE: |
| 287.3 g | 90 | 259 mm | 527.7 cm² | 3.62 mH |
| Xmax: | Xmech: | Voice Coil Dim: | Winding Material / Type: | Magnet Type: |
| 18 mm / .708" | 30 mm / 1.2" | 3" | 4 Layer copper | Ferrite |
| Magnet Weight Oz: | Cone Material: | Surround Type: | Efficiency: | Displacement: |
| 240 | Paper | U shaped foam | 0.09 % | 5.2 L / 0.19 cu.ft |
