REF8W
€279,00

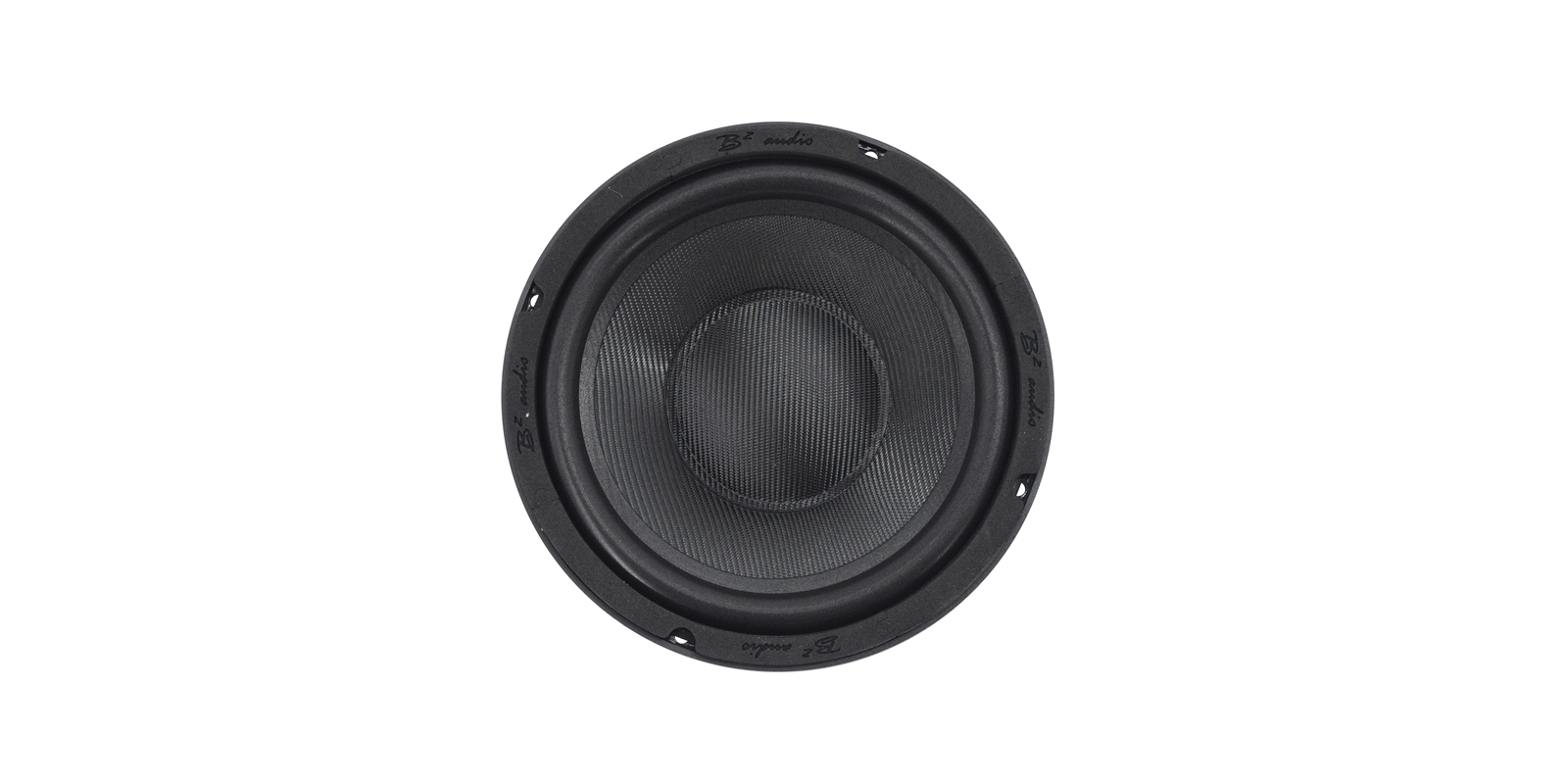

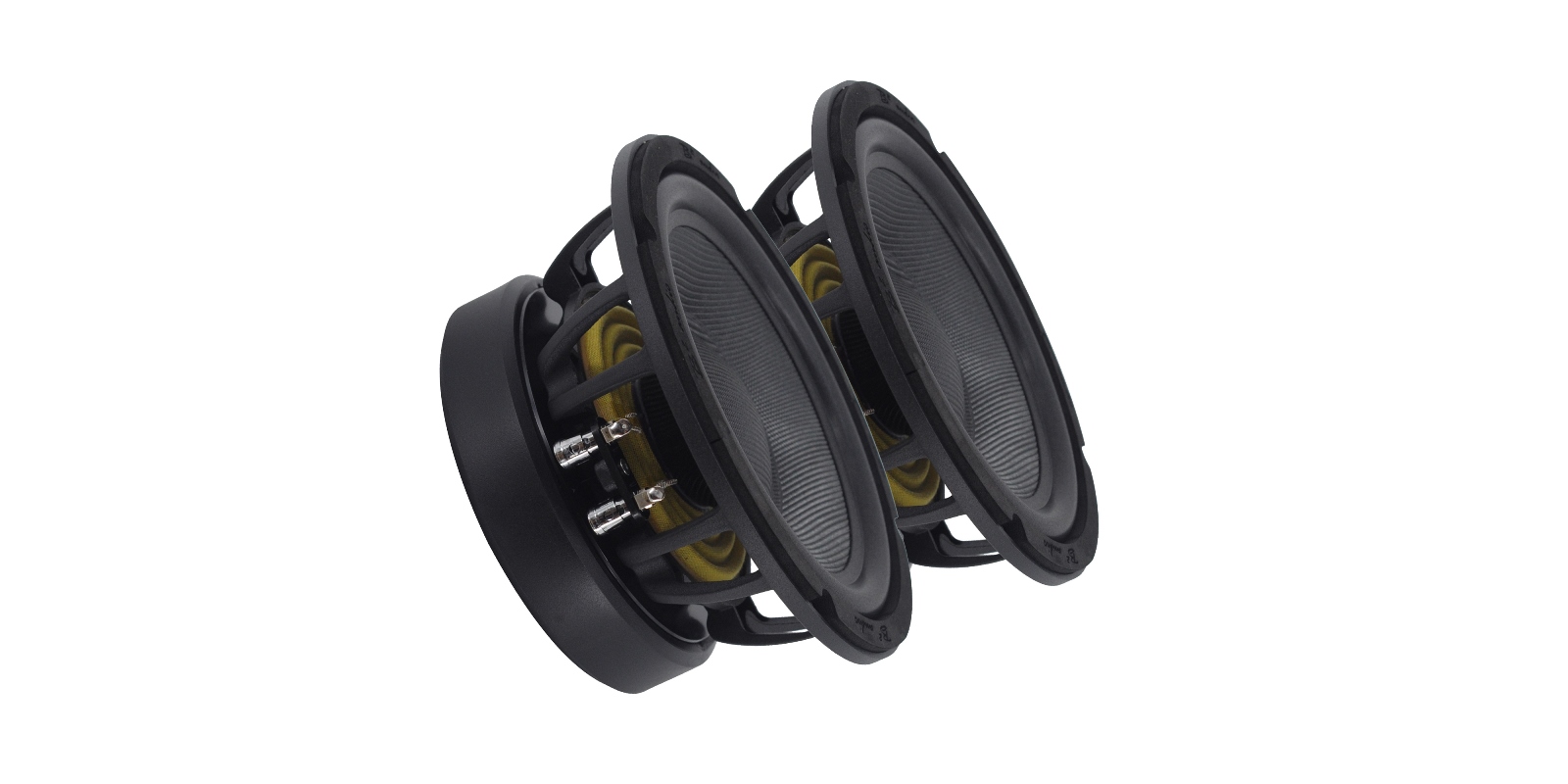

The REF8W is a high-performance 8″ midwoofer designed to enhance your audio experience. It seamlessly integrates into any of the B2 Audio Reference, RAGE, RIOT & MANI series loudspeaker set, offering a cohesive and harmonious audio performance for those who want more than just a 6.5″.
REFERENCE 8
As an exceptional addition to our esteemed Reference lineup, the REF8W sets a new standard in audio performance by exceeding the high benchmarks established by its predecessors.
With several 8″ woofers already complementing our product range, the REF8W presents a distinctive approach to sound reproduction. Featuring an impressive frequency response of 40 Hz to 6 kHz, this nearly full-range driver is sufficiently versatile to enhance any audio configuration.
INSIDE & OUTSIDE
The design showcases versatility across applications—whether as a woofer, midwoofer, or midrange driver, it excels in performance. Focused on home audio principles, it emphasizes efficiency, compact dimensions, and excellent acoustics. The REF8W complements existing systems or serves as a standalone upgrade.
It integrates well with current setups and enhances sound fidelity. The REF63 and RAGE63 can form a 3-way system with this 8″ driver, allowing for low-frequency reproduction without needing large enclosures.
THE TECH
To optimize the suspension with a narrower 2″ voice coil, we doubled the winding height by winding on both the in-& the outside of the former, solving power handling concerns. This method, while seemingly simple, requires precise winding to maintain the 4.2″/108 mm mounting depth. The composite cone and dust cap enhance efficiency, offering improved transient response. Coupled with a FEA-engineered motor featuring a ventilated pole piece and copper shorting ring, it reduces distortion. The REF8W is packaged in a custom flight case with soft-cell black foam, as excellence deserves special presentation.
| Frequency Response: | Sensitivity: | Nominal Impedance: | Resonance Frequency: | Power Handling: |
|---|---|---|---|---|
| 40 Hz ~ 6 KHz | 93.2 dB | 4 Ω | 42 Hz | 400 W / 200 W |
| QMS: | QES: | QTS: | VAS: | BL^2/RE: |
| 8.3 | 0.16 | 0.156 | 28.53 | 60.7 |
| MMS: | SD: | Effiency: | LE: | Voice Coil Dim: |
| 36.8 g | 226.9 cm² | 1.27 % | 0.2 | 2" |
| Winding Material / Type: | Magnet Type: | Magnet Weight Oz: | Cone Material: | Surround Type: |
| GEI (Inside & Outside wound) | Ferrite | 54 | Composite Fiber | U Shaped Foam |
