RAMPAGE15 ELITE
€1.499,00
The Rampage subwoofers are nothing short of legendary. The latest version known as Rampage Elite, sets the bar even higher. This subwoofer isn’t just for anyone—it’s for those who demand to be at the top of the food chain and settle for nothing less than absolute supremacy.
| Weight | 58 kg |
|---|---|
| Dimensions | 50 × 50 × 50 cm |
THE EVOLUTION OF AN ICON
The foundations of the RAMPAGE were established in 2012, evolving from the iconic and groundbreaking X2C subwoofer equipped with a 5″ voice coil. While the RAMPAGE utilizes a 4″ coil platform, it not only honors its legacy but boldly elevates performance beyond expectations.

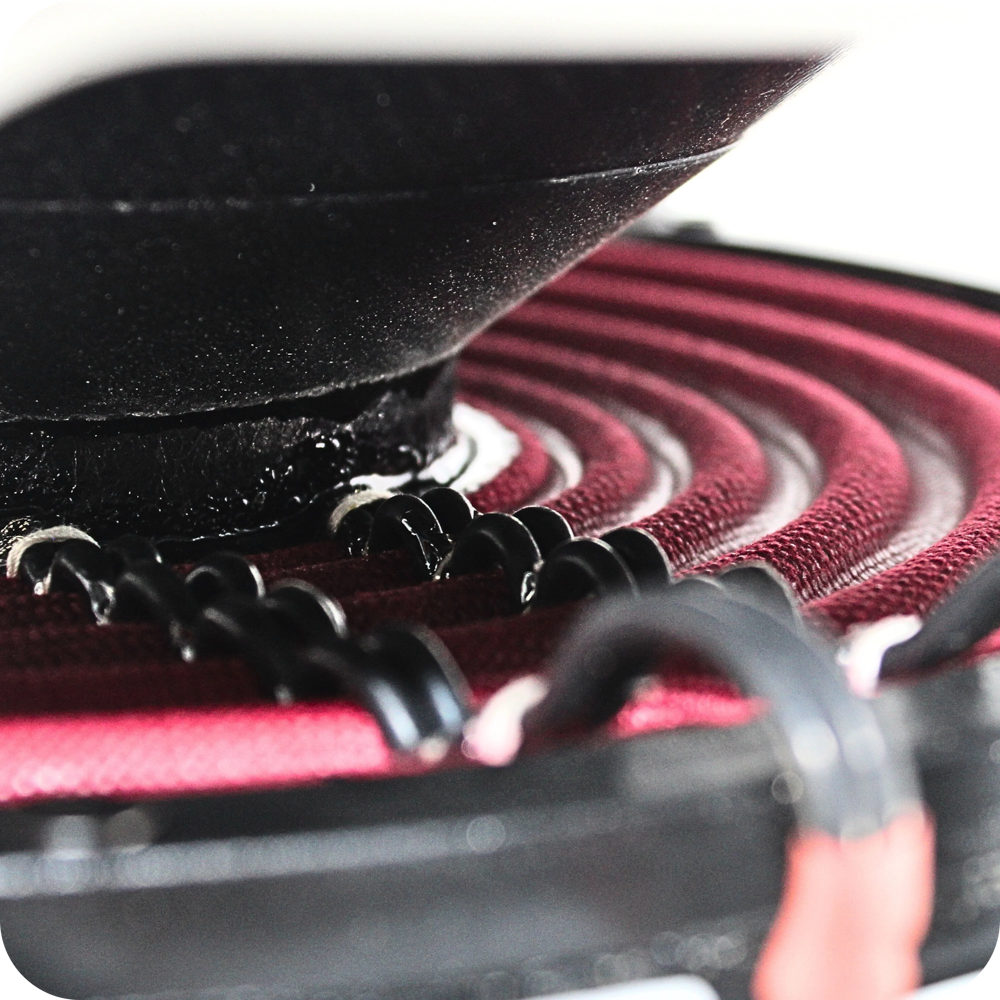

The innovative basket design enhances cooling through advanced SAFT (Smooth Air Flow Technology) and boasts a superior XMAX over the earlier model. With a peak-to-peak excursion of 3.15″ (80 mm), achieved using 315 mm (12.4″) spiders on this 15″, you’ll experience impressive flex with minimized distortion. Every detail in these meticulously crafted units plays a crucial role as you test the limits.
WIDEBODY

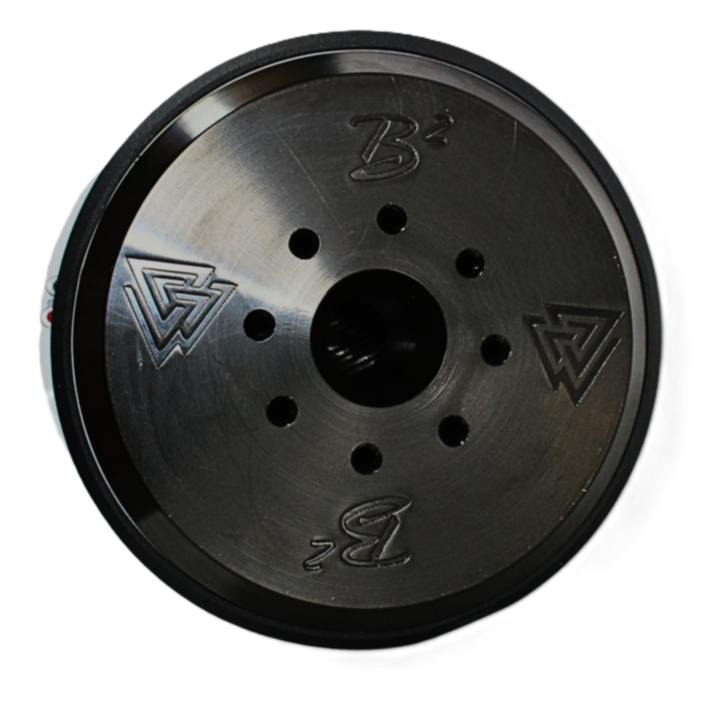

The OCAF Version II (Optimized Cooling and Flow) is integrated into the advanced motor design and accommodates the significant contours of the X2C’s backplate. Additionally, the pole piece features a dual cooling system designed to effectively direct airflow away from the voice coil. With an internal diameter of 4″ and an outer diameter of 4.33″, the coil is classified as a widebody design. The 8-layer and tall winding coil is meticulously engineered for consistent operation and extended demonstrations, effortlessly meeting the demanding requirements of the audio scene.
The motor of the RAMPAGE ELITE has undergone a 20% increase in diameter compared to the standard RAMPAGE. The use of quad Y35 slugs, rather than the previous triple configuration, increases the motor’s force. These slugs are now bolted through the top plate and secured to the back plate, promoting greater stability and minimizing the risk of shifting. With a motor assembly weighing 1,400 oz, this is truly the ELITE of the RAMPAGE series.
2024 marked the first revision of the ELITE. The surround height was increased by nearly 15%, reducing mechanical strain as the driver approaches and exceeds its mechanical limits. This revision improves suspension control and helps maintain a more consistent response at extreme excursion.

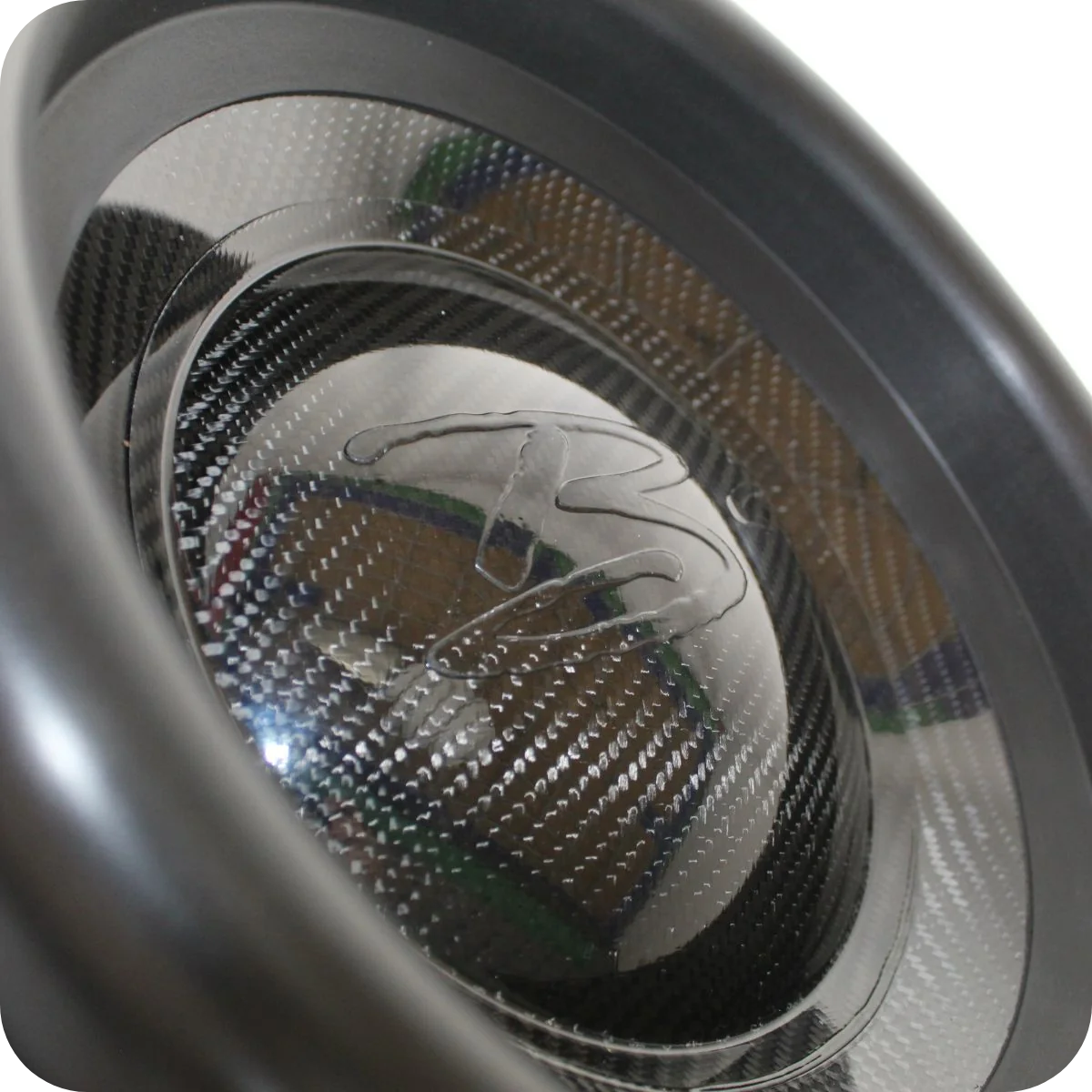

Maintaining Mms close to that of the previous model was achieved by utilizing full carbon-fiber cones and dust caps, keeping the T/S parameters within the intended tolerance.
| Frequency Response: | Sensitivity: | Nominal Impedance: | Resonance Frequency: | Power Handling: |
| 10 Hz ~ 500 Hz | 85.8 dB / 92.2 dB | 1 Ω | 27.5 Hz | 10000 W / 5000 W |
| QMS: | QES: | QTS: | VAS: | BL^2/RE: |
| 7.25 | 0.44 | 0.42 | 39.75 L | 285.6 |
| MMS: | CMS um/N: | Dia: | SD: | LE: |
| 690 g | 50 | 308.6 mm | 748.2 cm² | 2.5 mH |
| Xmax: | Xmech: | Voice Coil Dim: | Winding Material / Type: | Magnet Type: |
| 40 mm / 1.575" | 45 mm / 1.772" | 4" | 8 Layer aluminum | Ferrite |
| Magnet Weight Oz: | Cone Material: | Surround Type: | Efficiency: | Displacement: |
| 1400 | NPP (reinforced) or Carbonfiber (optional) | Tall U shaped foam | 0.24 % | 17.56 L / 0.62 cu.ft |
| DUAL 2 Ω | ||||
| Frequency Response: | Sensitivity: | Nominal Impedance: | Resonance Frequency: | Power Handling: |
| 10 Hz ~ 500 Hz | 86.7 dB / 89.6 dB | 2 Ω | 27.2 Hz | 10000 W / 5000 W |
| QMS: | QES: | QTS: | VAS: | BL^2/RE: |
| 7.11 | 0.38 | 0.36 | 39 L | 315.7 |
| MMS: | CMS um/N: | Dia: | SD: | LE: |
| 695 g | 50 | 308.6 | 748.2 cm² | 4.7 mH |
| Xmax: | Xmech: | Voice Coil Dim: | Winding Material / Type: | Magnet Type: |
| 40 mm / 1.575" | 45 mm / 1.772" | 4" | 8 Layer aluminum | Ferrite |
| Magnet Weight Oz: | Cone Material: | Surround Type: | Efficiency: | Displacement: |
| 1400 | NPP (reinforced) or Carbonfiber (optional) | Tall U shaped foam | 0.28 % | 17.56 L / 0.62 cu.ft |
